Most producers know the frustration of a creative dry spell. Jonny Strinati walks through ten techniques to help break the writer’s block and generate new track ideas.

UsE Audio-To-Score To CREATE Chords

Extracting the melody from a percussion loop can be a great way to kickstart a new idea. Furthermore, playing back the hook you’ve created alongside your original percussion loop usually creates a strong framework to build on.

Step 1

Begin by loading a percussion loop into your DAW. We’re using Logic Pro X here, but Ableton and Cubase both feature the ability to extract MIDI data from audio files. There are even plugins dedicated to this task such as Melodyne.

We’ve loaded a two-bar percussion loop onto an audio track. We’ve made sure there is some variation between the different percussion hits contained in the loop, so the MIDI we extract from this loop will contain notes of different pitch. If your first choice of loop doesn’t create good results, it’s quick and easy to try another one until you find something that works.

Step 1

Step 2

Now press cmd-F on your keyboard to show Flex Pitch/Time. You will now see a Flex icon appear on the audio track; click this so it turns purple and activates Flex editing for this audio region.

Underneath the Flex icon there is a drop-down menu containing the different types of Flex editing we can apply. Select Flex Pitch. You will now see MIDI notes appear on the audio region, reflecting the pitches of each percussion hit.

Step 2

Step 3

We now need to transfer the MIDI notes we’ve generated to a new instrument. Double-click on the audio region to bring up Flex Pitch editing. In the top left of the pane there is an Edit drop-down menu. Towards the bottom of this menu you will see ‘Create MIDI Track from Flex Pitch Data’. Select this option. Logic will extract the MIDI data and create an Electric Piano track with the pattern.

Step 3

Step 4

Now we can transfer this MIDI region to another synth and search for a more interesting sound. We’ll load an instance of U-he’s excellent Diva synth and recall the ‘HS Fatima poly’ patch found in the POLY SYNTH category.

Step 4

Step 5

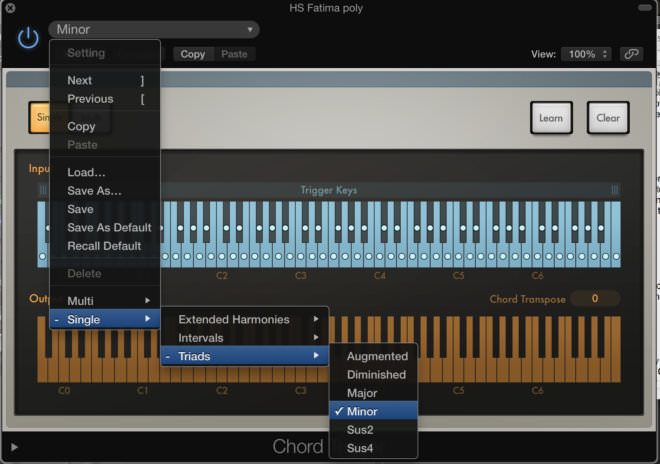

Now we can take things one step further by using Logic’s Chord Trigger MIDI effect to generate chords from the MIDI notes we’ve created. On the Diva channel strip, underneath the EQ box there is a MIDI FX slot. Select Chord Trigger from the list.

We’ve chosen to load the Minor preset from the Single>Triads category. This creates extra notes three semitones and seven semitones above the root, giving us a nice warm minor triad.

Dropping the notes down by one octave for a deeper sound, here’s our quick and easy chord pattern playing back alongside the original percussion loop and a simple kick pattern:

Step 5.1 Step 5.2 Step 5.3

Tutorials is brought to you by

UVI

UVI are developers of creative virtual instruments, effects and software for professional audio production.

World-renowned products include: Falcon, Relayer, Vintage Vault and many more…

UVI products are crafted to deliver the finest experience possible – offering a wealth of unique and inspiring instruments, the highest quality sound, innovative features, efficient reliable performance and world-class user interfaces.

Visit UVI

  • Ryan

    Really nice tutorials thank you !
    Any way to do the tutorial number 4 with only Ableton ?

  • Jonny Strinati

    In session view, right click on your audio region and select ‘Convert Audio to New MIDI Track’

  • Ben

    In this case, “Convert Audio to new Midi Track” is going to slice the audio up. If you want to extract the melody, just right click and select “Convert Melody to new Midi Track”

  • Jonny Strinati

    Thanks for clearing that up Ben!

  • Tpot aka Authuser

    I think its fair to say most people can get nice loops going, but moving beyond that can be the problem, fleshing out an idea can be difficult – and loop-mong often sets in…… better off doing some tutorials about that subject………

  • This was GREAT! Thanks for all the ideas. I love the fact that I can record my voice and create a midi track out of it.

  • Ryan

    Thanks you Ben and Jonny Striate !

  • Genius. Thanks for the tips!

  • craig forrest

    audio doesn’t appear to be working for these examples?

  • ericadmin

    Thanks for pointing this out Craig.

    It appears to be working for us.

    Which browser are you in?

    Is it all the examples?
